Author: Kevin Publish Time: 2026-03-16 Origin: IGOLDENLASER’s
Industrial laser rust removal uses focused pulsed laser beams to vaporize rust through thermal ablation without damaging underlying metal. 1000W laser removes moderate rust at 1-2 m² per hour with zero consumables, no chemical waste, and 40% lower operating costs than sandblasting. Works on steel, iron, and most metal alloys, producing clean surface ready for coating.
This article is for maintenance engineers and manufacturing managers seeking modern rust removal solutions. After nearly a decade at IGOLDENLASER, I've helped hundreds of operations transition from traditional methods.
The Science: Laser-contaminant interaction — rust absorbs laser energy efficiently while clean metal reflects. Thermal ablation heats rust to 2,000-3,000°C vaporizing it. Plasma formation assists removal while shielding substrate.
Material Selectivity:
Rust absorption at 1064nm: 70-90%
Clean steel absorption: 30-40%
Rust thermal conductivity: Low
Steel thermal conductivity: High
This differential allows lasers to remove rust while leaving clean metal unaffected.
50-100W: Light oxidation, precision parts, <0.1mm rust, 0.2-0.5 m²/hour.
200-500W Handheld: Maintenance, field work, 0.1-0.3mm rust, 0.5-1.0 m²/hour.
1000W Industrial: Production, heavy rust, 0.3-0.5mm rust, 1-2 m²/hour.
2000W Heavy-Duty: Thick scale, high-volume, 0.5-1.0mm rust, 2-4 m²/hour.

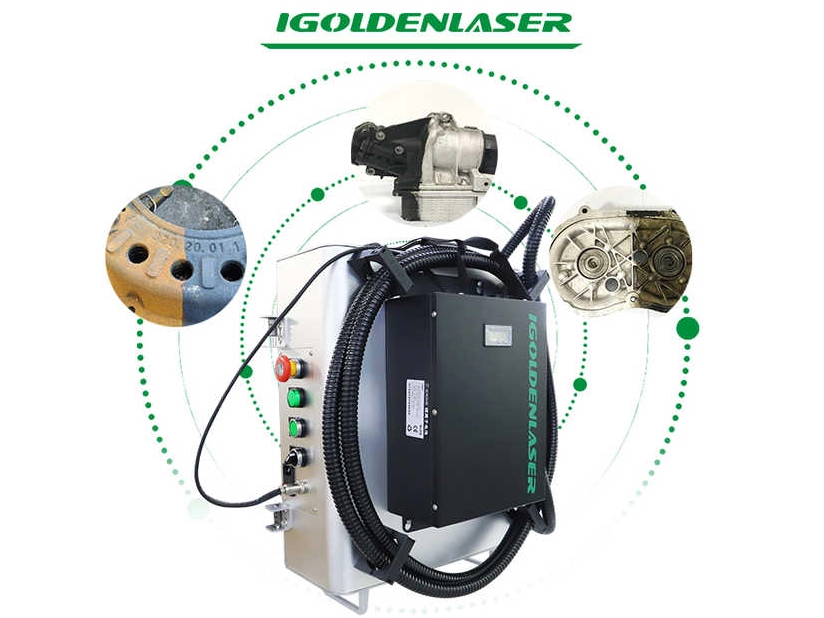

IGOLDENLASER Product Range: CLEANHAND Series (200W-500W) portable, CLEANPRO Series (1000W-2000W) industrial, CLEANAUTO Series automated, plus custom configurations.
Automotive: Classic car restoration, underbody rust removal, weld preparation. Benefits: no panel distortion, preserves metal thickness, clean surface for primer. IGOLDENLASER Solution: 500W-1000W handheld with precision optics.
Mold Maintenance: Injection mold rust removal, die casting cleaning, stamping tool restoration. Benefits: non-contact preserves surface finish, extends mold life, in-machine cleaning possible. IGOLDENLASER Solution: 200W-500W with fine spot control.
Marine: Hull preparation, deck rust removal, tank cleaning. Benefits: no abrasive containment, no salt contamination, environmental compliance. IGOLDENLASER Solution: 1000W-2000W for heavy marine rust.
Manufacturing: Raw material prep, pre-weld cleaning, post-weld oxide removal. Benefits: consistent quality, no consumables inventory, improved coating adhesion. IGOLDENLASER Solution: 1000W-2000W automated for production.
Infrastructure: Bridge steel maintenance, structural preparation, monument restoration. Benefits: portable for field work, no environmental contamination, minimal disruption. IGOLDENLASER Solution: 500W-1000W portable with generator compatibility.
Key Parameters: Laser power (higher = faster, balance with substrate safety), scan speed (faster = less heat, slower = deeper), pulse frequency (higher = smoother surface), spot size (smaller = higher intensity), overlap (30-50% ensures coverage).
Optimization by Rust Type:
Light surface rust: 30-50% power, 3-5 m/s speed, 100-200 kHz, 1-2mm spot, 1 pass
Moderate rust: 50-80% power, 2-3 m/s, 100 kHz, 0.5-1mm spot, 1-2 passes
Heavy rust/scale: 80-100% power, 1-2 m/s, 50-100 kHz, 0.5mm spot, 2-4 passes
Cleanliness Level: Laser achieves Sa 2.5 to Sa 3.0, comparable to sandblasting, ready for coating without secondary cleaning.
Surface Profile: Minimal change (<5μm), maintains original finish, no roughening unlike sandblasting, smooth surface for thin coatings.
Verification Methods: Visual inspection for uniform metallic appearance, tape test per ASTM D3359, profilometer readings, salt contamination testing via Bresle patch method.
Environmental Benefits: Zero chemical waste, minimal air emissions with fume extraction, no water usage, recyclable waste (rust dust is inert standard industrial waste).
Safety Requirements: Laser safety Class 4 requires wavelength-specific safety glasses, interlocked enclosures, warning signs, trained operators. Respiratory protection with fume extraction mandatory. Fire safety requires removing flammables, extinguisher available. Electrical safety requires qualified installation, ground fault protection, lockout/tagout.
IGOLDENLASER Safety Features: Safety interlocks on all panels, emergency stop buttons, laser emission indicators, fume extraction integration, comprehensive safety documentation, operator training.
Operating Cost Per Hour (1000W System):
Laser: $37/hour total
Sandblasting: $74.50/hour
Chemical: $77/hour
Laser saves 50% vs sandblasting, 52% vs chemical.
Annual Operating Cost (2000 hours/year):
Laser: $74,000
Sandblasting: $149,000
Chemical: $154,000
Annual savings: 80,000 vs chemical.
ROI Example — Automotive Restoration Shop:
Sandblasting annual cost: $45,250
Laser annual cost: $19,000
Equipment investment: $25,000
Annual savings: $26,250
Payback: 11 months
5-year savings: $131,250
Step 1 Application Assessment: Evaluate rust type and thickness, substrate material, production volume, quality requirements, environmental constraints. IGOLDENLASER provides free sample processing and feasibility assessment.
Step 2 Equipment Selection: Choose based on power requirements, operating mode (handheld vs automated), production volume, budget. IGOLDENLASER offers 200W-2000W options plus custom configurations.
Step 3 Installation and Training: Requirements include electrical supply (220V single-phase or 380V three-phase), fume extraction system, adequate workspace, safety barriers. Training covers laser safety certification, equipment operation, parameter optimization, maintenance, troubleshooting.
Step 4 Process Optimization: Test on production parts, optimize for speed and quality, document best practices, train all operators. IGOLDENLASER provides process engineering assistance.
Q: How thick rust can laser remove?
A: 1000W systems handle up to 0.5mm. 2000W systems handle up to 1mm. Thicker scale may need multiple passes. Send samples to IGOLDENLASER for free testing.
Q: Does laser damage base metal?
A: No when properly configured. Parameters vaporize rust while clean metal reflects laser. MOPA fiber lasers offer precise control for sensitive applications.
Q: What rust types respond best?
A: All iron oxide types — red rust (hematite), black rust (magnetite), brown rust (goethite). Most efficient on loose flaky rust. Tightly adherent mill scale may need higher power or multiple passes.
Q: Can laser remove paint along with rust?
A: Yes, laser removes most paints effectively. Multi-layer systems may need multiple passes. Advantage is selective removal — can remove rust and paint while preserving primer if desired.
Q: Safe for thin metal sheets?
A: Yes with proper parameter control. Thin materials need lower power and higher speed to prevent warping. MOPA lasers excel at thin material applications. 200W-500W systems with fine spot control work well for automotive panels.
Q: What surface finish does laser produce?
A: Clean metallic surface rated Sa 2.5 to Sa 3.0 comparable to sandblasting. Unlike sandblasting, laser maintains original surface profile without anchor patterns. Surface is smooth and ready for coating.
Q: How does laser compare to electrolysis?
A: Laser is 10-100x faster, requires no water or chemicals, provides immediate results, works on any size part, and is portable for field use. Electrolysis requires immersion tanks and extended processing times.
Industrial laser rust removal combines effectiveness of traditional methods with unprecedented precision, environmental benefits, and cost efficiency. Modern IGOLDENLASER systems deliver reliable, consistent performance transforming rust removal from messy hazardous chore into clean controlled process.
Whether restoring classic automobiles, maintaining industrial molds, preparing ship hulls, or managing manufacturing production, laser rust removal offers advantages translating directly to improved quality, reduced costs, and better environmental compliance.
At IGOLDENLASER, decade of specialization combining German engineering precision with Chinese manufacturing efficiency positions us as your ideal partner.
Contact IGOLDENLASER for free sample processing. Send rusted parts for cleaning quality demonstration and speed measurement.
IGOLDENLASER | Laser Cleaning 50W-2000W | 15,000m² Facility | CE Certified
Website: https://www.toplaserclean.com/
