Unparalleled Power with Precision Control
Our 6000W laser cleaning system delivers industrial-strength performance while maintaining exceptional precision. The concentrated power effortlessly removes stubborn contaminants while our advanced optics ensure substrate integrity remains completely uncompromised.
Non-Contact Cleaning Technology
Experience damage-free surface preparation with our contactless laser technology. Unlike abrasive methods, our system preserves the original material dimensions and mechanical properties while achieving superior cleaning results on even the most challenging surfaces.
Precision-Targeted Cleaning
Achieve unprecedented cleaning selectivity with adjustable parameters that allow for precise position and size control. Clean complex geometries and delicate components with confidence, targeting only unwanted contaminants while protecting critical features.
Environmentally Sustainable Solution
Eliminate the need for harsh chemicals, abrasives, and disposal costs with our eco-friendly cleaning approach. The 6000W system requires zero consumables, produces minimal waste, and dramatically reduces your environmental footprint while improving workplace safety.
Versatile Implementation Options
Enjoy exceptional operational flexibility with both handheld and robotic integration capabilities. The intuitive interface allows for immediate operation after power-up, while seamless robot compatibility enables automated cleaning for production environments.
Maximum Efficiency, Minimum Downtime
Process large surface areas at remarkable speeds with our 40,000mm/s cleaning rate and 500mm cleaning width. Reduce project timelines and labor costs while maintaining consistent, high-quality results across your entire operation.
Maintenance-Free Reliability
Invest in long-term productivity with our exceptionally stable laser cleaning system. The robust design requires virtually no maintenance, ensuring continuous operation and maximizing your return on investment through reduced service requirements and extended equipment lifespan.

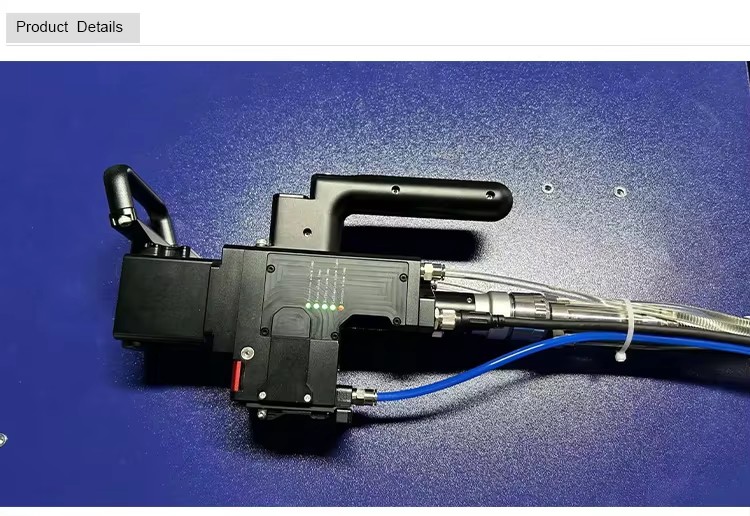

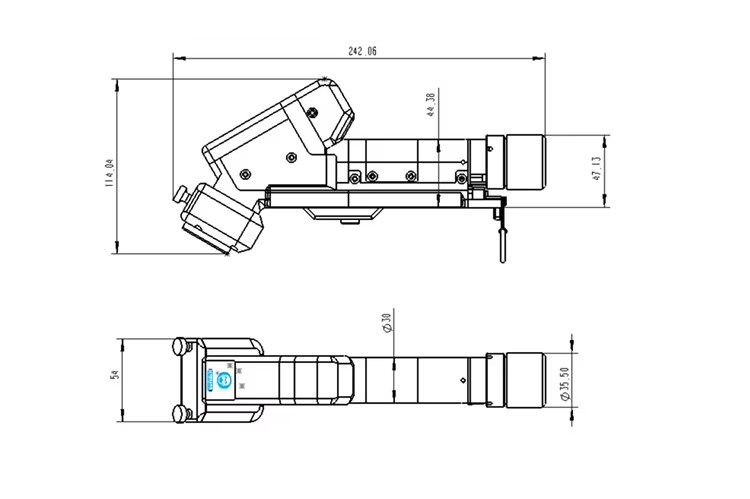

| Name | Intelligent Handheld Cleaning Head |
| Model | FWH60-C30A |
| Fiber Interface | QBH |
| Wavelength Scope | 1070±20nm |
| Rated Power | ≤6KW |
| Collimation Focal Length | 75mm |
| Focus Focal Length | 1500mm |
| Scanning Width | 200～500mm |
| Scanning Speed | 40000mm/s |
| Auxiliary Pressure | ≥0.5～0.8Mpa |
| Effective clear aperture | Ø20 |
| Weight | 2.2Kg |
Advanced Cleaning Versatility
Our 6000W laser system features two specialized cleaning heads, each engineered with distinct operational modes to address your specific application requirements. This versatile design allows operators to seamlessly switch between cleaning profiles, optimizing performance for various contaminants and surface types with precision control.
Environmentally Superior Solution
Experience truly sustainable industrial cleaning with our zero-consumable technology. The system eliminates the need for replacement parts and disposable materials typically associated with traditional cleaning methods, significantly reducing operational costs and environmental impact throughout the equipment lifecycle.
Chemical-Free Processing
Protect valuable assets and operator safety by eliminating chemical cleaning agents entirely. Our advanced laser technology prevents the material degradation, structural weakening, and surface damage commonly caused by chemical exposure, while simultaneously removing environmental compliance concerns and hazardous material handling requirements from your operation.
