Robotic Laser Cleaning Technology
IGOLDENLASER
| PDF Export | |
The IGCL-RC Robotic Laser Cleaning System represents the pinnacle of automated surface restoration technology. This sophisticated system harnesses high-frequency, high-energy laser pulses to instantly vaporize surface contaminants including oil residues, rust formations, and various coatings. The precision-controlled laser energy effectively removes unwanted materials while preserving the integrity of the underlying substrate.

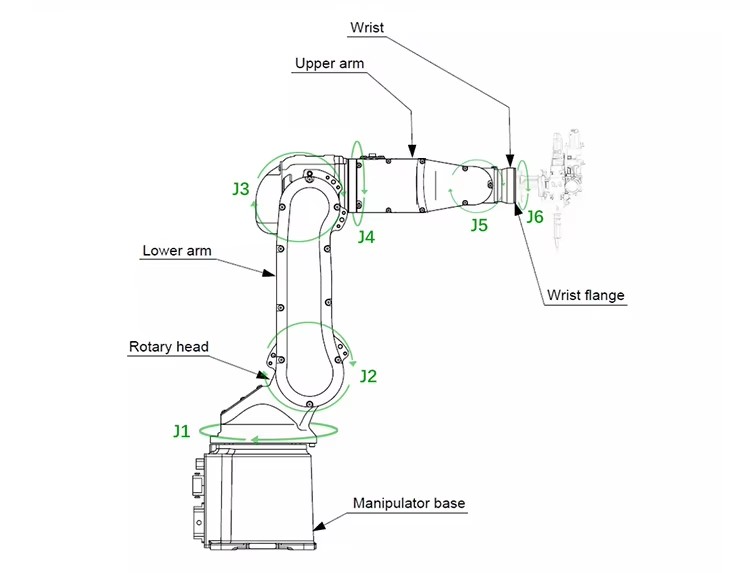

Experience unmatched processing flexibility through our integrated six-axis robotic system. The IGCL-RC delivers exceptional positioning accuracy across an extensive operational range, enabling efficient cleaning of complex three-dimensional surfaces and intricate component geometries. The system seamlessly processes multiple cleaning zones and varied surface textures through sophisticated programming capabilities.
Our robotic laser cleaning solution is engineered for continuous 24/7 operation in demanding industrial environments while maintaining remarkably low operational costs. The perfect synergy between advanced laser technology and robotic automation creates an intelligent, highly flexible cleaning platform that significantly outperforms conventional methods in both efficiency and processing quality.
Superior Automation: Six-axis robotic precision ensures consistent results across complex geometries
Versatile Processing: Advanced laser head technology enables selective cleaning with precise positioning and dimensional control
Non-Contact Operation: Eliminates mechanical abrasion and substrate damage while delivering exceptional cleaning speed and accuracy
Environmentally Responsible: Chemical-free process requires no consumables, creating a safer workplace and reducing environmental impact
Cross-Industry Application: Ideal for automotive manufacturing, machining operations, electronics production, heritage conservation, mold maintenance, maritime applications, food processing facilities, and petrochemical industries
| Model | iGCL-RC- 1500 | iGCL-RC- 2000 | iGCL-RC- 3000 |
| Laser power | 1500W | 2000W | 3000W |
| Laser wavelength | 1080±10nm | ||
| Robot | SYNTEC cleaning robot | ||
| Max. load on wrist | 20KG | ||
| Repositioning accuracy | ±0.08mm | ||
| Run-length | 0-300mm | ||
| Focal length | 500-1000mm | ||
| Cleaning mode | Supports multiple cleaning modes (see corresponding system for details) | ||
| Voltage | 220V±10%/380V±10% | ||
| Total power | ≤8kw | ≤10kw | ≤12kw |
| Gross weight | 268KG（Robor）+260KG（The Cleaning machine） | ||
| Remarks: Other brand robots can be customized | |||
