The Laser Paint Stripping Machine is a cutting-edge technological solution that employs concentrated laser beams to precisely remove paint and coatings from various surfaces. This advanced system vaporizes or breaks down paint layers into particles for efficient removal, while ensuring the underlying material remains completely intact. The non-contact nature of this process makes it ideal for both delicate applications and industrial-scale operations.
Plug-and-Play Operation: Simple installation and operation with minimal setup requirements - just connect to power, turn on, and begin stripping immediately. ,
Chemical-Free Processing: Performs all cleaning operations without chemicals, media, dust, or water, offering a clean and environmentally responsible alternative to traditional methods. ,
Auto-Focus Capability: Features intelligent auto-focus technology that adapts to curved surfaces, ensuring consistent results across complex geometries.

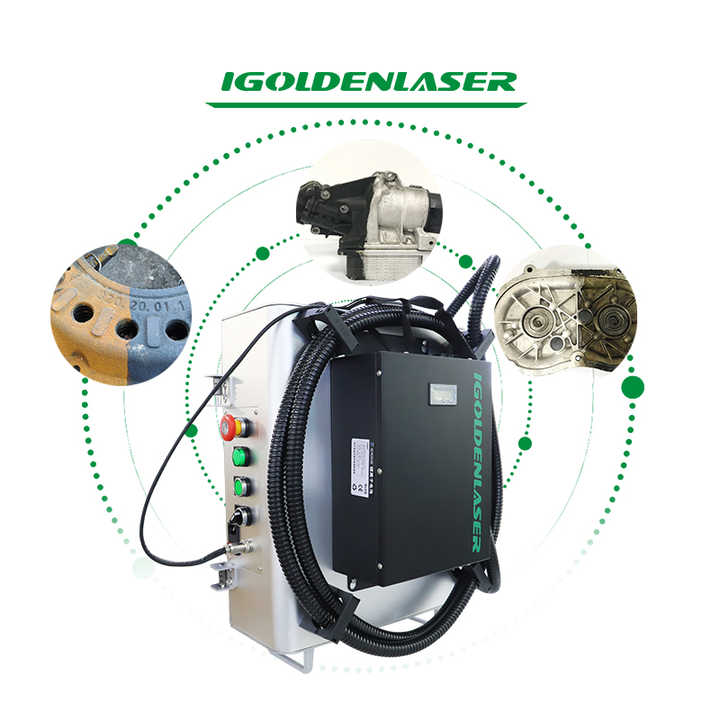

Versatile Material Removal: Effectively removes resin, oil stains, rust, coating materials, and various types of paint from workpiece surfaces.
Automation Potential: Easily integrated into automated production lines for enhanced efficiency and consistency.
Superior Precision: Selectively removes paint without causing any damage to the underlying substrate, making it suitable even for the most delicate surfaces and materials.
Environmentally Friendly: Eliminates the need for harmful chemical strippers or abrasive materials, significantly reducing environmental impact and waste management concerns. ,
Long-Term Cost Efficiency: Despite higher initial investment, delivers substantial savings through reduced labor costs, minimal consumable materials, and decreased waste disposal expenses.
Material Versatility: Performs effectively across a wide spectrum of materials including metals, wood, plastics, and composite materials, providing a single solution for diverse applications.
Enhanced Workplace Safety: Minimizes worker exposure to toxic chemicals and dangerous airborne particulates associated with traditional stripping methods, creating a safer work environment.
Reduced Maintenance Requirements: Features minimal maintenance needs compared to abrasive or chemical-based systems, resulting in less downtime and lower operational costs.
Clean Process Technology: Operates without creating secondary waste streams such as chemical runoff or abrasive media, simplifying cleanup and disposal procedures. ,
This laser paint stripping technology represents the latest advancement in surface preparation and coating removal, combining precision engineering with environmental responsibility to deliver superior results across industrial, automotive, aerospace, and restoration applications. ,
| ower supply | Standard AC220V±10%, 50/60Hz power adapter (output DC48V) |
| Optional battery 100W for 80-90 minutes | |
| Overall power consumption | ＜300W |
| Operating ambient temperature | 5℃～40℃ |
| Working environment humidity | ≤80% |
| Optical parameter | |
| Average laser power | ≥100W |
| Power instability | ＜5% |
| Laser operation mode | Pulse |
| Pulse width | 150-190ns |
| Max. monopulse energy | 1.7mJ |
| Optical quality（M2） | ＜1.6 |
| Controlling power range（%） | 10-100(The gradient is adjustable) |
| Repetition frequency（kHz） | 20-200（The gradient is adjustable） |
| Fiber length | 1.5m |
| Type of cooling | Air cooling |

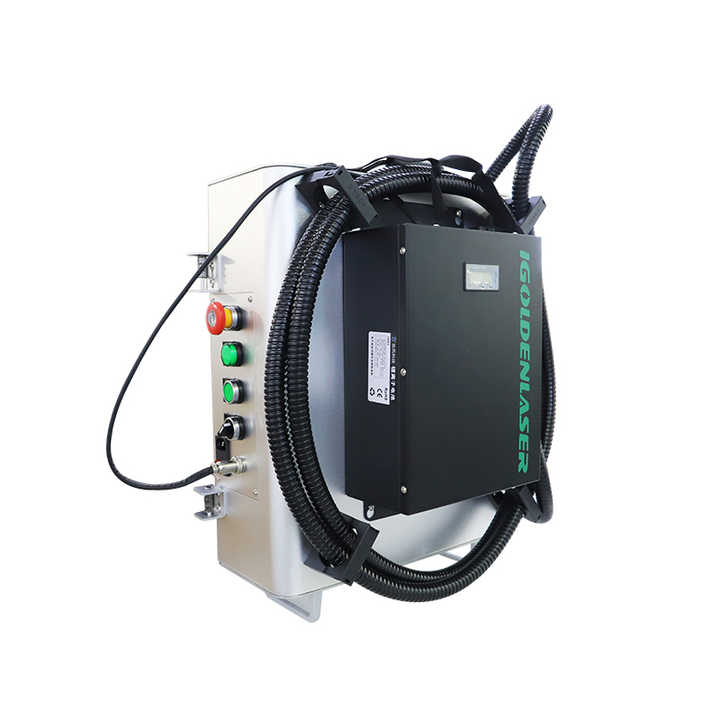

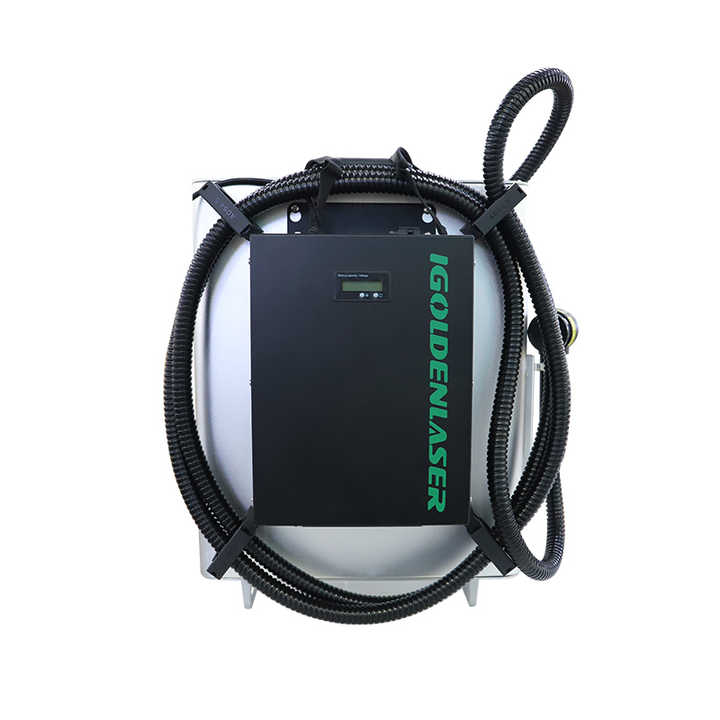

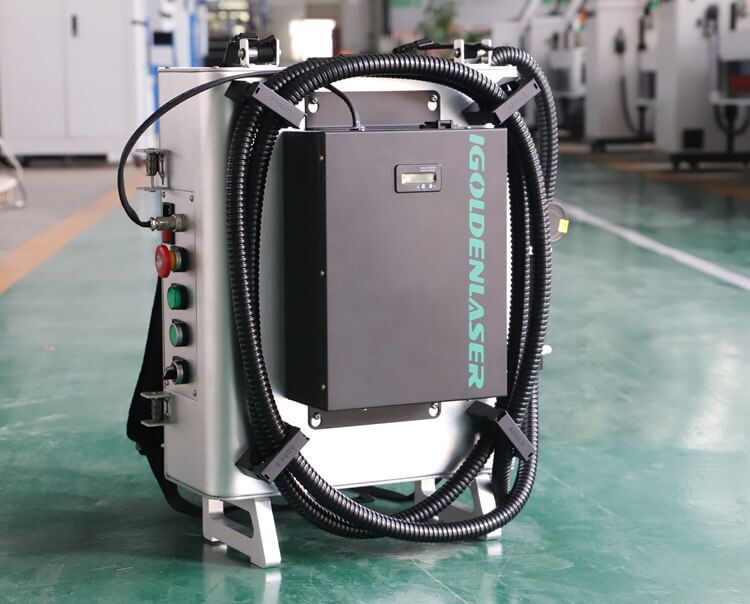

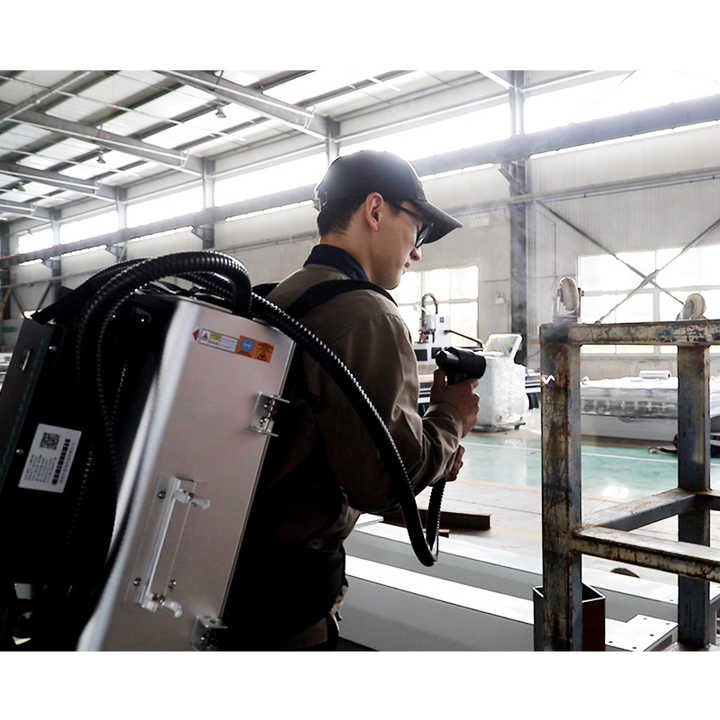

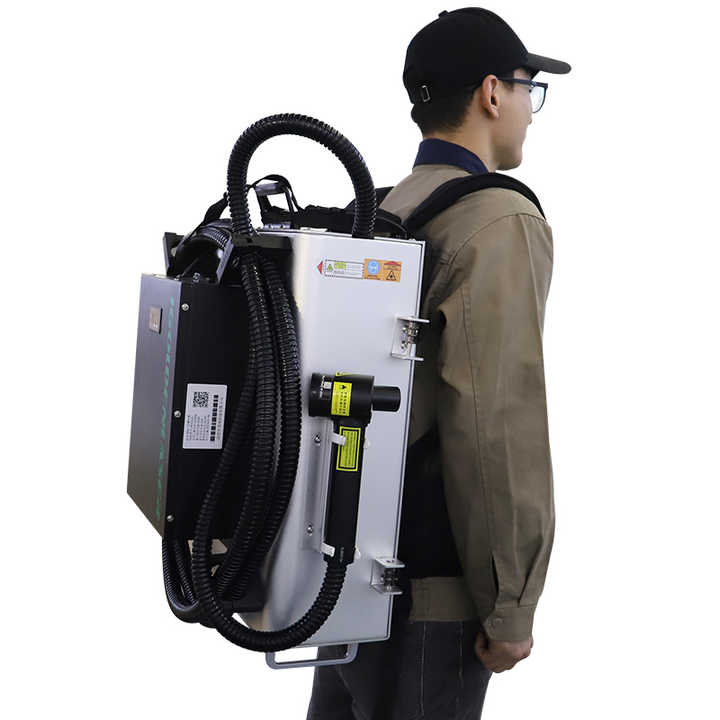

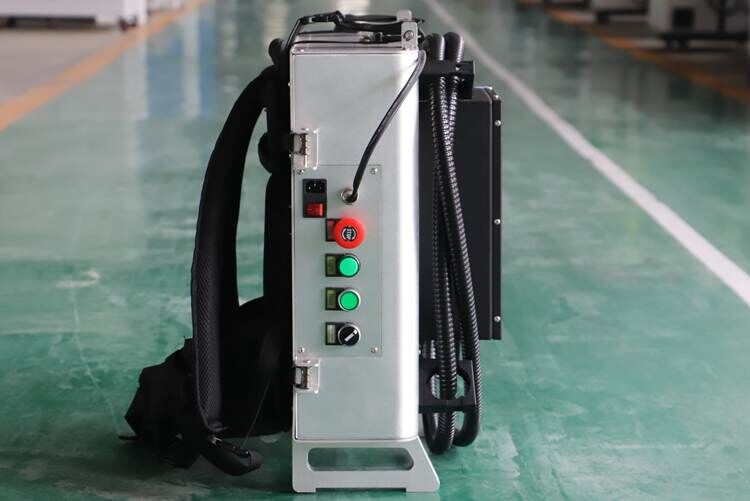

Integrated Portable BodyFeaturing a compact and aesthetically pleasing integrated chassis design that can be carried via shoulder strap or backpack style, enabling truly portable, hands-free operation. The entire unit boasts a compact, lightweight structure that significantly enhances mobility, allowing you to perform efficient paint removal operations anywhere, anytime.
External Battery Power SystemFlexible power solution supporting both direct plug-in operation and external battery pack connection, perfectly adapting to working scenarios without power sources. Innovative replaceable battery design supports simultaneous charging and operation, effectively eliminating work interruptions and enhancing continuous operation capability.

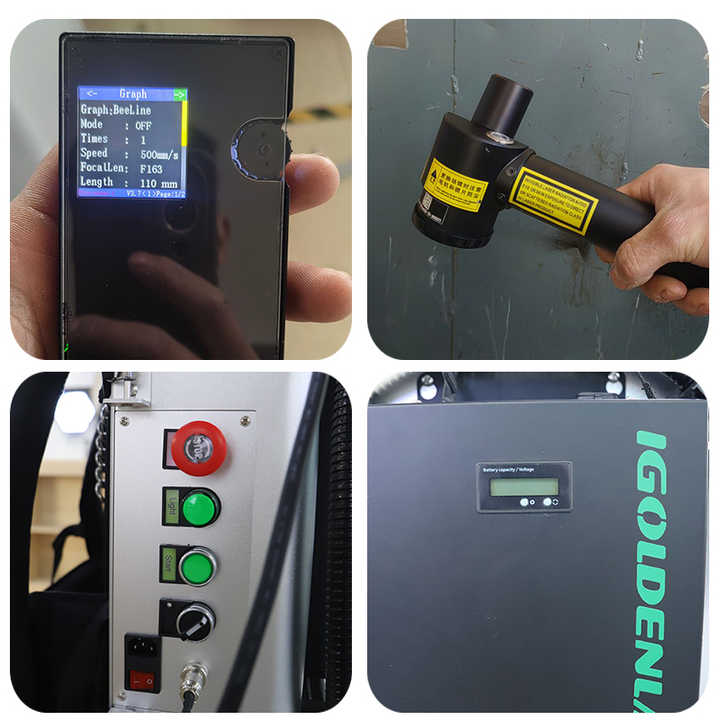

Lightweight Handheld Cleaning HeadStreamlined structural design, featherlight weight, and intuitive operation. Incorporates imported high-speed scanning motor in a compact form factor with high precision and exceptional stability, reducing fatigue during extended operation periods.
Wireless Control SystemEquipped with wireless control screen featuring a clear, simplified interface where all parameters can be flexibly configured and adjusted. Achieves precise positioning and accurate dimensional selective cleaning to meet various professional paint removal requirements, significantly improving work efficiency and quality.
True Portability: Lightweight overall design for easy carrying and transportation
Power Flexibility: Supports both mains power and battery operation modes, adapting to various working environments
Effortless Operation: Lightweight handheld head design reduces fatigue during prolonged operation
Precise Control: Wireless remote parameter adjustment enables refined paint removal operations
Continuous Operation: Replaceable battery design supports uninterrupted workflow requirements
This portable laser paint removal system, with its flexible mobility, simple operation, and precise control, provides an efficient and environmentally friendly professional solution for various paint removal application scenarios.
