You have just received your new industrial laser cleaner. It’s a powerful asset capable of transforming your maintenance workflow. But before you pull the trigger, proper setup is non-negotiable.
A laser cleaning machine is a precision optical instrument. Incorrect installation—such as using the wrong water in the chiller or poor grounding—can damage the laser source before you clean a single part.
At Top Laser Clean, we want you to hit the ground running. This guide covers the essential laser cleaning machine installation steps, ensuring your equipment is safe, stable, and ready for action.

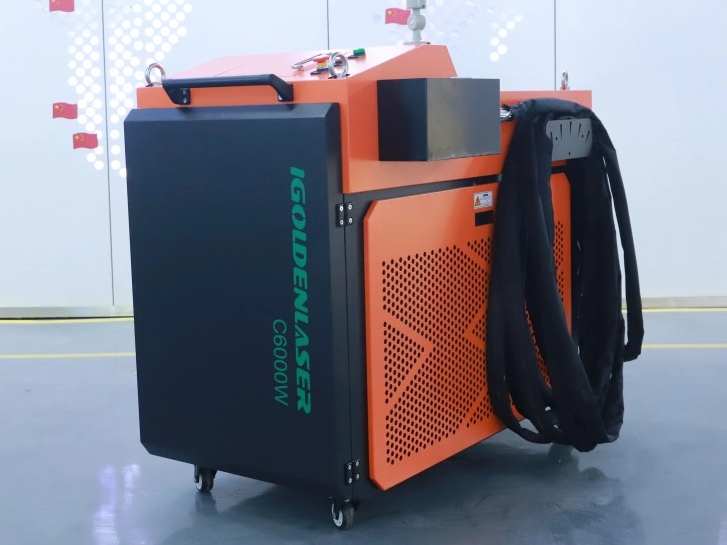

Understanding the components helps you install them correctly. Your system consists of:
The Cabinet: Houses the laser source (the engine) and electronics.
The Chiller: Circulates water to keep the laser cool.
The Handheld Gun: The delivery system containing sensitive mirrors.
The Fiber Cable: The "umbilical cord" that transports light. Handle with extreme care.
View the specifications of our systems on our Laser Rust Cleaning Machine Product List.
Before unboxing, ensure your environment is ready.
Temperature: The room should be between 10°C and 35°C. (Avoid freezing temperatures which can crack the chiller).
Humidity: Below 80%, non-condensing.
Ventilation: Ensure you have a fume extractor or open airflow to remove dust generated during cleaning.
Distilled Water: (Crucial!) You need 10-15 liters of pure distilled water for the chiller. Never use tap water.
Power Supply: Check if your machine is 220V single-phase or 380V three-phase.
Hex Keys/Allen Wrenches: Usually included in the toolbox.
Follow these steps in order. Do not skip the safety checks.
Place the machine on flat, stable ground.
Clearance: Leave at least 50cm of space behind the machine for airflow.
Stability: Lock the caster wheels to prevent movement during operation.
Voltage Check: Verify the label on the back (e.g., AC 220V ±10%, 50/60Hz).
Grounding (Earth): This is vital. Static electricity can destroy the laser control board. Ensure your outlet has a verified earth ground connection.
Connection: Plug the main power cable into the aviation socket on the machine, then into your wall outlet. Do not turn it on yet.
Most failures occur here.
Open the Reservoir: Locate the water inlet on top of the chiller (often inside the back door).
Fill with Distilled Water: Pour slowly until the gauge reaches the Green Zone (Normal).
Check Hoses: Ensure the water output/input hoses are not kinked.
Air Purge: When you first turn on the machine, the water level will drop as pipes fill. You may need to add more water after the first 2 minutes.
Uncoil the Fiber: Carefully unwind the yellow fiber optic cable. Never bend it sharply (minimum bend radius > 15cm). A kinked fiber = a broken machine.
Mount the Gun: Place the laser gun in its holster. Ensure the protective lens cap is on when not in use.
Power On: Turn the Key Switch. Release the Emergency Stop button.
Boot Up: The screen will light up. Select your language (English).
Mode Selection: Choose the cleaning mode (e.g., "Linear" for rust, "Spiral" for paint) on the touchscreen.
Before applying the laser to a workpiece, perform these safety checks.
Action: Enable the "Preview" or "Guide Light" on the screen.
Observation: You should see a red line or box projected on the floor. This confirms the mirrors are moving and the control board is active.
Action: If your machine has a safety clip or door interlock, try to fire the laser with it open.
Result: The machine should NOT fire. If it does, stop immediately and check wiring.
Action: Set power to 10%. Wear your OD6+ Safety Glasses. Aim at a scrap piece of metal.
Result: You should hear a buzzing sound and see a small spark. If successful, the installation is complete.
Issue | Cause | Solution |
Water Alarm Beeping | Low water level or kinked hose. | Top up distilled water; check hoses for bends. |
Laser Won't Start | E-Stop pressed or Interlock open. | Twist E-Stop to release; insert safety interlock key. |
No Red Light | Galvanometer power issue. | Check internal 24V power supply connections. |
Condensation on Gun | Water temp too low vs. room temp. | Adjust chiller temp to match ambient room temp (e.g., 25°C). |
The Mobile Restoration Service:Scenario: A client mounted a 1500W Laser Cleaner in a van.Installation Win: By following our guide on shock absorption and securing the fiber cable, they have driven 50,000km with zero optical misalignment.
The Factory Integration:Scenario: A manufacturing plant needed to integrate the laser into a conveyor belt.Installation Win: Using the "External Control" port (explained in our manual), they successfully automated the firing sequence, ensuring the laser only fires when a part is present.
A correct laser cleaning machine installation is the foundation of safety and longevity. By ensuring clean power, pure water, and gentle handling of the fiber optics, your machine will deliver consistent results for years.
Ready to start cleaning?If you encounter any issues during setup, our technical team is ready to assist via video call. For detailed manuals or to view our latest models, visit our Laser Rust Cleaning Machine Product List.
