When investing in industrial equipment, smart buyers look at the "Total Cost of Ownership." You aren't just buying a Laser Cleaning Machine; you are buying a system that requires specific care to maintain its precision.
Many users focus solely on the laser power (1000W vs. 2000W) but overlook the critical accessories and consumables that keep that power running. A dirty $10 protective lens can destroy a $5,000 laser gun in seconds.
At Top Laser Clean, we believe in transparency. This guide details the essential parts and consumables you need to know about to ensure your machine runs smoothly for years, not just months.
To understand why accessories matter, you must visualize the laser beam's journey.
Source: The beam is generated in the fiber source.
Transport: It travels through the fiber cable.
Manipulation: It enters the Laser Head, bounces off mirrors (galvanometers), and passes through the F-Theta Lens.
Protection: Finally, it exits through a Protective Lens (window) before hitting the rust.
If any component in this chain is dirty or low-quality, the beam weakens, and the machine overheats.
See our fully equipped systems on our Laser Rust Cleaning Machine Product List.
These are the permanent components that facilitate the cleaning process.
This is the operator's main tool.
Types:
1D Heads: Create a simple line scan. Good for speed.
2D/Wobble Heads: Can create spirals, circles, or snowflakes. Better for cleaning without leaving "zebra stripes" on the metal.
Selection Tip: Ensure your laser head is ergonomic (lightweight) and has a built-in screen for quick parameter adjustments.
High-power lasers generate immense heat.
Water Chillers: Standard for machines over 500W. They must maintain water within ±1°C.

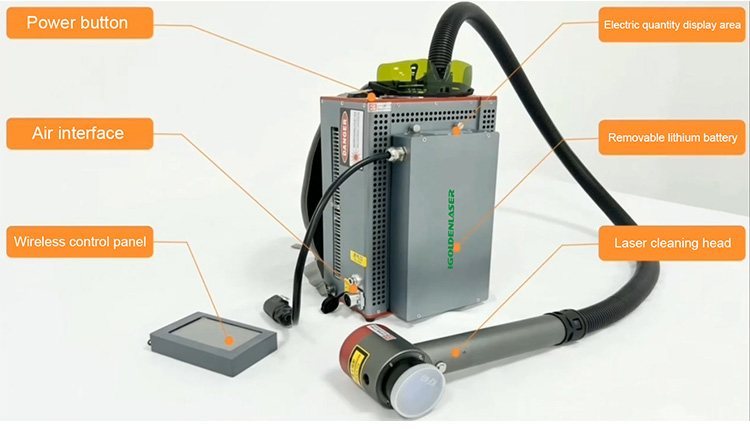

Air Cooling: Found in portable/backpack units (typically 100W-200W).
Why it matters: If the chiller fails, the laser source will shut down immediately to prevent thermal destruction.
The F-Theta lens determines the "Field of View" (cleaning width).
F160 Lens: Standard. Offers a balance of cleaning width (approx. 100mm) and energy density.
F254 Lens: Wider cleaning area, but the laser energy is spread thinner (less aggressive).
Selection: Choose based on your workpiece. Large flat walls need a wide lens; intricate molds need a narrow, focused lens.
Unlike sandblasting (which consumes tons of sand), laser cleaning is low-consumable. However, there are a few key items.
This is a small glass window at the tip of the gun.
Function: It sacrifices itself to save the expensive F-Theta lens. It blocks dust, smoke, and metal sparks from entering the gun.
Lifespan: Depends on usage. In heavy rust removal, you might change it weekly. In clean mold applications, it can last months.
Warning: Never operate with a cracked or dirty protective lens. The laser will burn the dirt, heat the glass, and shatter it backwards into the gun.
Pre-Filter: Traps large dust particles.
HEPA Filter: Traps fine metal vapor (hazardous).
Activated Carbon: Traps smells and gases.
Maintenance: These must be replaced when the suction power drops, usually every 3-6 months depending on workload.
You cannot clean optical glass with a dirty rag.
Required: Lint-free optical wipes (Kimwipes) and high-purity Alcohol (IPA >99%) or Acetone.
Usage: You should wipe the protective lens daily to remove smoke residue.
A proactive schedule prevents downtime.
Component | Inspection Frequency | Replacement Signs | Estimated Lifespan |
Protective Lens | Daily | Black spots, cracks, or "foggy" coating. | 1 week - 3 months |
Distilled Water | Weekly | Water level drops below "Green Zone." | Change water every 3 months |
Fume Filters | Monthly | Reduced suction; "Change Filter" alarm. | 3 - 6 months |
Focus Lens | Yearly | Scratches or coating degradation. | 2 - 5 years (if protected) |
When buying laser cleaning machine accessories, the source matters.
Official Supplier: Buying from Top Laser Clean ensures the lens coating matches your specific laser wavelength (1064nm).
Cheap Third-Party: Generic lenses often have poor anti-reflective coatings. This causes the laser beam to reflect back into the machine, causing overheating.
We recommend keeping a "Survival Kit" on the shelf:
5x Protective Lenses.
1x Bottle of Optical Cleaner.
1x Set of Fume Extractor Filters.
Why? You don't want to shut down production for 3 days waiting for a $10 piece of glass.
The reliability of your Laser Cleaning Machine is directly tied to the quality of its accessories and the discipline of your maintenance.
Good Accessories (Chillers, F-Theta lenses) determine performance.
Good Consumables (Protective lenses, filters) determine longevity.
Don't let a dirty lens stop your production.Ensure you have the right spare parts on hand. For a full list of compatible accessories for our machines, visit our Laser Rust Cleaning Machine Product List or contact our support team for a maintenance kit quote.
