When you invest in a laser cleaning system, you aren't just buying a box; you are buying a capability. While the market demand for laser cleaning machines is skyrocketing due to their eco-friendliness and efficiency, many buyers overlook a critical aspect of ownership: the ecosystem of accessories and consumables.
Unlike sandblasting (which consumes tons of grit) or chemical cleaning (which requires drums of solvents), laser cleaning is famous for having low operating costs. However, "low" does not mean "zero."
Understanding which parts wear out, which accessories enhance performance, and how to maintain them is the difference between a machine that lasts 2 years and one that lasts 10. In this guide, Top Laser Clean breaks down the essential hardware and consumables you need to know.
Laser cleaning works by focusing high-energy light beams to vaporize contaminants. This process creates dust, vapor, and heat.
While the machine itself (the laser source) is sealed and robust, the point where the light exits the machine—the Laser Head—is exposed to the harsh environment of the workshop. This is where accessories and consumables play their vital role: protecting the core technology from the very dirt it is removing.
View our complete systems and their components on our Laser Rust Cleaning Machine Product List.
These are the permanent components that facilitate the cleaning process. When choosing a machine, ensure these accessories are high quality.

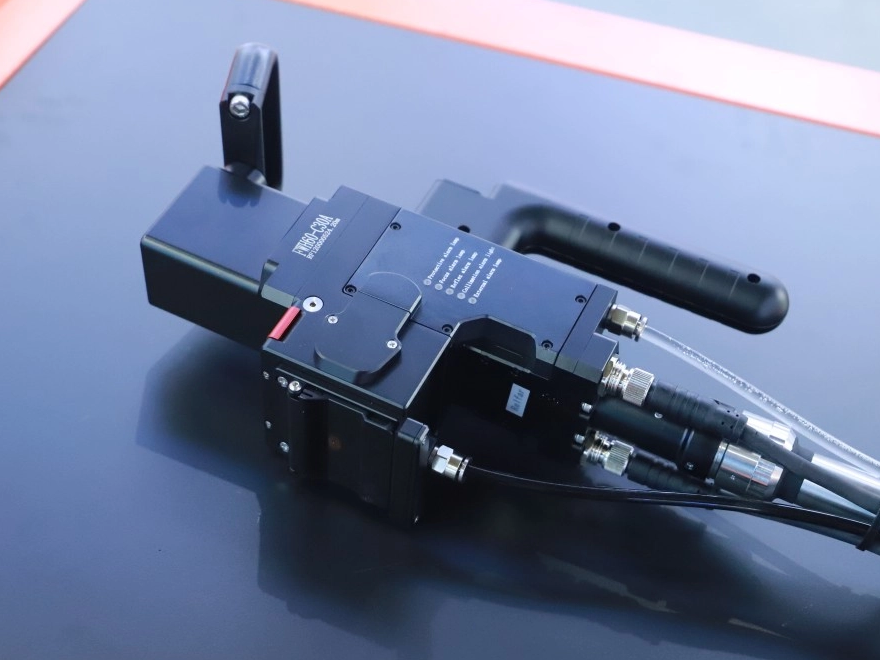

The handheld gun is your interface with the work.
Types: Look for 2D Scanning Heads. Unlike older 1D heads (which only scan a line), 2D heads can clean in circles, rectangles, or spirals. This prevents "Zebra stripes" on the metal and provides a more uniform finish.
Ergonomics: Since operators hold this for hours, weight matters. A good accessory setup includes a lightweight gun (<1kg) with an integrated display screen.
Lasers generate heat. If the source gets too hot, it shuts down or degrades.
Water Chillers: Standard for high-power machines (1000W+). They circulate coolant to keep the laser source stable.
Air Cooling: Found in portable/backpack units (100W-200W). They use fans and heat sinks.
Selection Tip: Ensure your chiller has an alarm system that stops the laser if the water flow is blocked.
The F-Theta Field Lens determines the focal point and the cleaning area (e.g., 160mm x 160mm).
Why it matters: You might want different lenses for different jobs. A long focal length lens is good for deep cleaning; a short focal length is better for high-precision surface preparation.
One of the biggest selling points of laser cleaning machine consumables is that the list is very short. However, one item is critical.
This is a small, inexpensive piece of glass (window) placed at the very tip of the laser gun.
Function: It sacrifices itself to save the expensive Field Lens. It blocks dust, sparks, and smoke from entering the gun.
Lifespan: Depending on usage and environment, a protective lens might last anywhere from 1 week to 1 month.
Cost: They are cheap ($5 - $15). Never try to save money by using a damaged one; you will ruin the $500 field lens behind it.
While not part of the laser itself, a fume extractor is mandatory for safety.
Consumable: The HEPA and Carbon filters inside the extractor will fill up with vaporized rust and paint.
Replacement: Typically every 3-6 months, depending on workload.
You do not use chemicals on the metal part, but you do need them for the machine.
Items: High-purity Alcohol (>99% Ethanol or Isopropanol) and lint-free optical wipes. These are used to clean the protective lens daily.
To maximize the laser cleaning machine accessories lifespan, follow this routine.
Before starting work, unscrew the nozzle and check the protective lens.
Clean: If there is dust, wipe it gently with alcohol.
Replace: If there is a burn mark, a pit, or a crack, replace it immediately. Do not fire the laser with a dirty lens. The laser beam will heat the dirt, causing the lens to explode.
Water: Change the chiller water every 3 months. Use Distilled Water or Deionized Water only. Tap water creates mineral deposits that clog the system.
Air: Vacuum the dust filters on the air intake vents monthly to prevent overheating.
Part | Typical Lifespan | Sign of Failure |
Protective Lens | 50 - 200 Hours | Visible burn spots, cracked glass. |
Field Lens | 3 - 5 Years | Coating degradation, inability to focus. |
Chiller Water | 3 Months | Cloudy water, flow alarms. |
Fume Filters | 3 - 6 Months | Reduced suction, visible smoke escaping. |
Where should you buy your consumables?
For Optical Lenses and Laser Parts, always buy from your machine manufacturer or a certified laser specialist like Top Laser Clean.
Why: Lenses have specific coatings (Anti-Reflective) designed for specific wavelengths (1064nm). Buying a cheap, generic lens from a general marketplace might result in the wrong coating, which can reflect the beam back and destroy your laser source.
For general items like Distilled Water, Alcohol, or Cotton Swabs, local industrial suppliers or pharmacies are perfectly fine and often cheaper.
When choosing the best laser cleaning machine, don't just look at the wattage. Ask about the accessories and consumables.
A machine is only as reliable as its maintenance. By keeping a stock of protective lenses and maintaining your cooling system, your laser cleaner will remain a low-cost, high-efficiency asset for years.
Need to stock up or upgrade?Check out our range of machines and certified accessories on our Laser Rust Cleaning Machine Product List or contact our support team for a maintenance kit.
